New Raymarine EV1/ACU100

[Steve Chafer]

Hello

My first post (of many probably) – I am re-fitting a 1989 MK11 N33 and want to upgrade the autopilot so it can link with the chartplotter. Has anyone else installed an EV1/100 onto their Nauticat 33? Also what hydraulic pump have you got?

The current installation is a type 1 pump, S3 computer and a very old Raytheon controller. It does all work! but with modern systems I want to be able to link the new stuff with a chartplotter. Probably the Axiom 9+ or pro.

Any thoughts welcome.

Steve

[CARL JOHN SUFFIELD]

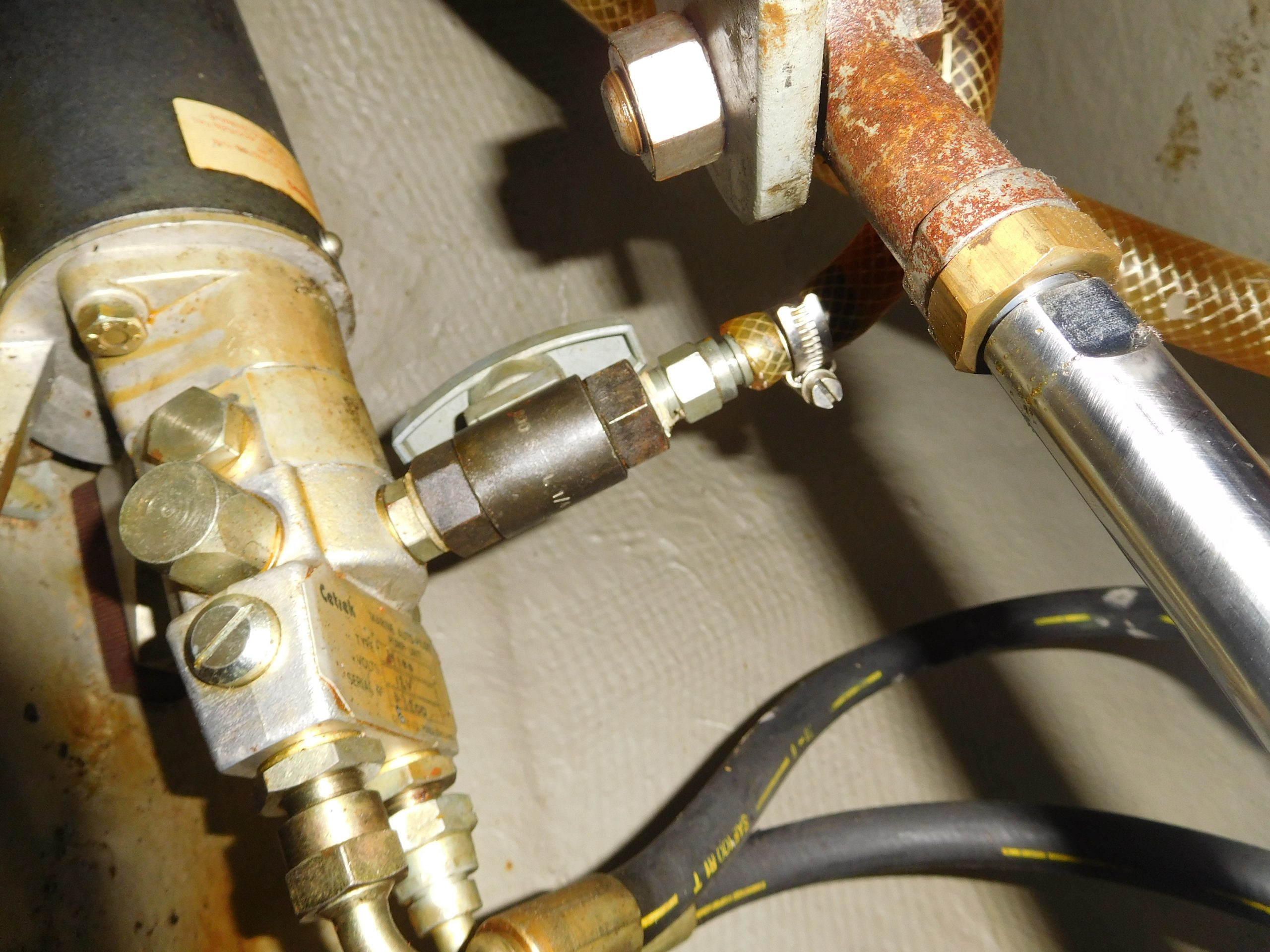

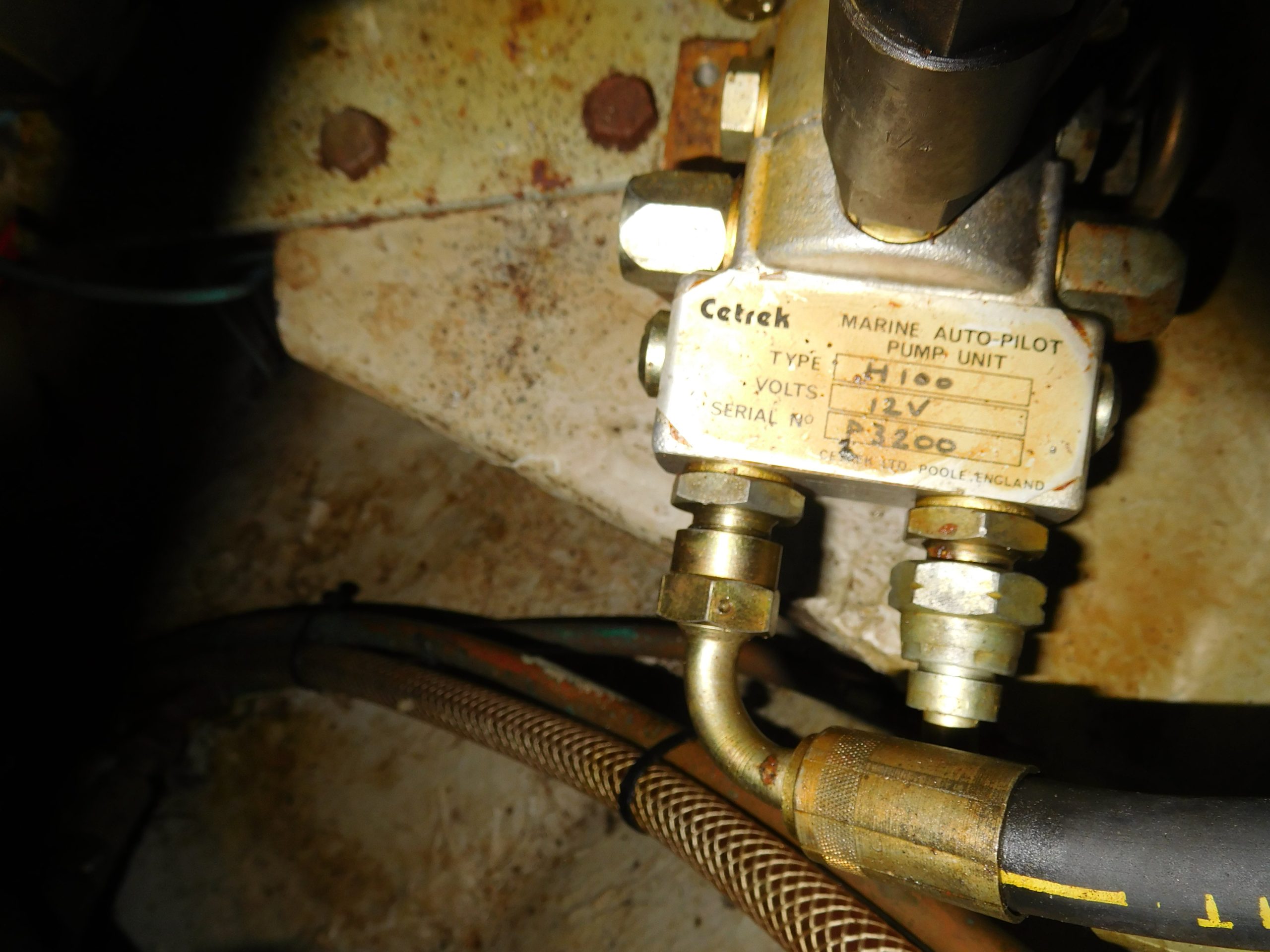

I have installed a EVI and ACU200 on my N33 MkII together with P70 auto pilot controller and Axion 9 chart plotter. The ACU100 is too small for a type 1 pump, it should be a ACU150 or 200 see attached. My hydraulic pump is a Cetrec H100 , no longer made but is same as Raymarine type 1

Attachments:

1.



2.



1. Compatable-Drive-Units-Suitable-ACU.pdf

[Steve Chafer]

Thanks for that, l am going with the Axiom too. Good to know it all works fine.
