….'Aaaaaargh' !!! (A wiring tangle)

This topic has 8 replies, 4 voices, and was last updated 9 years, 5 months ago by Roger Sturge.

Viewing 9 posts - 1 through 9 (of 9 total)

Author

Posts
8th September 2016 at 11:18 am #10480
Anonymous
Inactive
Posted on behalf of Ned Coackley.

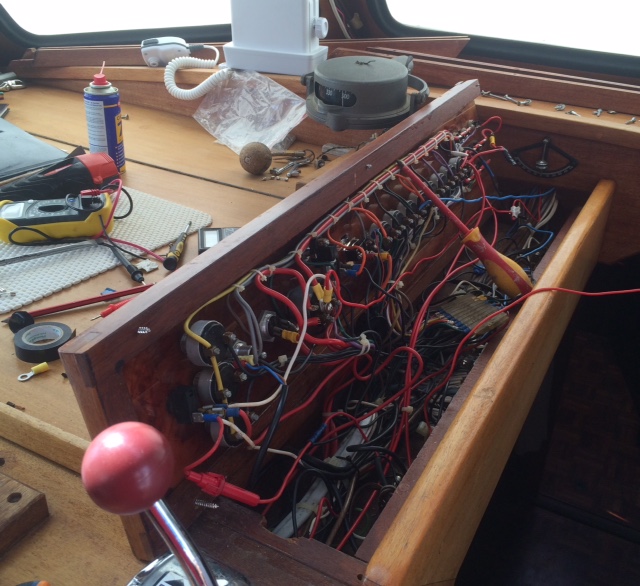

Does anyone have a wiring diagram for a Nauticat 33. Got some electrical problems at the moment, trying to sort out some ‘improvements’ installed by previous well meaning owners.

The German who bought it from Siltala had a 220v system installed then the South African computer tech who lived on it for 5 years did…..well, he bought a lot of wire …!

Thanks

Ned
Attachments:
1. FullSizeRender.jpg
8th September 2016 at 11:48 am #10705

victor crowhurst
Participant

It’s worth enquiring of Kai at Siltala if they have a diagram for your vessel. They started producing diagrams in the mid 90’s for the Mk11 33’s, they are very individual. If your problem relates to the Switch board which I see opened in the picture, problems there are often related to the resistors used in the Italian circuit board. Unsolder, test and replace them(even if they are still to spec, they will fail alongside new components).

8th September 2016 at 11:49 am #10708

Roger Sturge
Participant

Hi Ned

I sympathise. I have various bits of paper purporting to be wiring diagrams but I suspect my wiring has been altered quite a bit over Wild Cat’s 39 years of life (1977 33 Mk2).

I can send you what I have but not until I next visit Wild Cat which won’t be until middle of October. If you let me know on roger@rogerturge.me.uk before 10 October that you still need them I’ll try to get them to you sometime after I get back on 17 October

8th September 2016 at 2:09 pm #10714

Theresa Warrell
Participant

Ned
I have the original diagrams for my 43 year old Nauticat 33 ZARZUELA. Her previous owner was an electrician who took many short cuts when adding new equipment and I have had to rewire some circuits and completely rebuild the switch board.

ZARZUELA is currently under offer but I think I will be able to retrieve a copy of the diagrams. I will let you know when I have them.

John Claisse
j.claisse@btinternet.com

28th October 2016 at 9:33 pm #15139
Roger Sturge
Participant
Hi Ned

Here’s the first batch. More pages to follow.
Rogr Sturge Wild Cat
Attachments:
28th October 2016 at 9:42 pm #15146
Roger Sturge
Participant
Wiring diagrams batch 2
Attachments:
28th October 2016 at 9:45 pm #15153
Roger Sturge
Participant
Wiring diagrams NC33 batch 3
Attachments:
28th October 2016 at 9:54 pm #15160
Roger Sturge
Participant
Wiring diagram 4th batch
Attachments:
28th October 2016 at 9:55 pm #15167
Roger Sturge
Participant
Wiring. The last one.

Good luck

Roger
Attachments:
1. NC33-Electrical_20161028_0017.pdf
